AEON: Edge-Free Screen
AEON: Edge-Free Screen

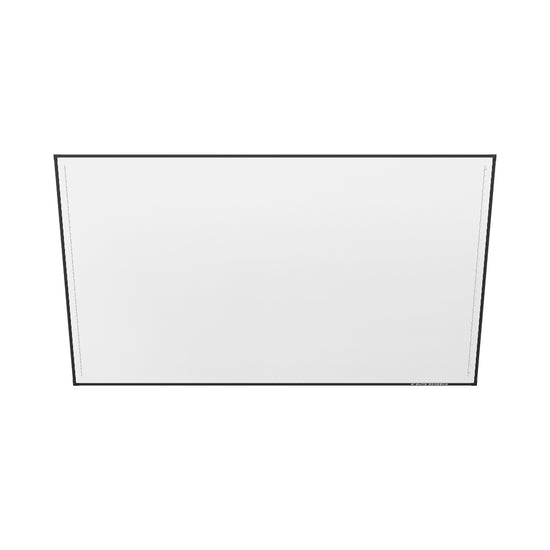

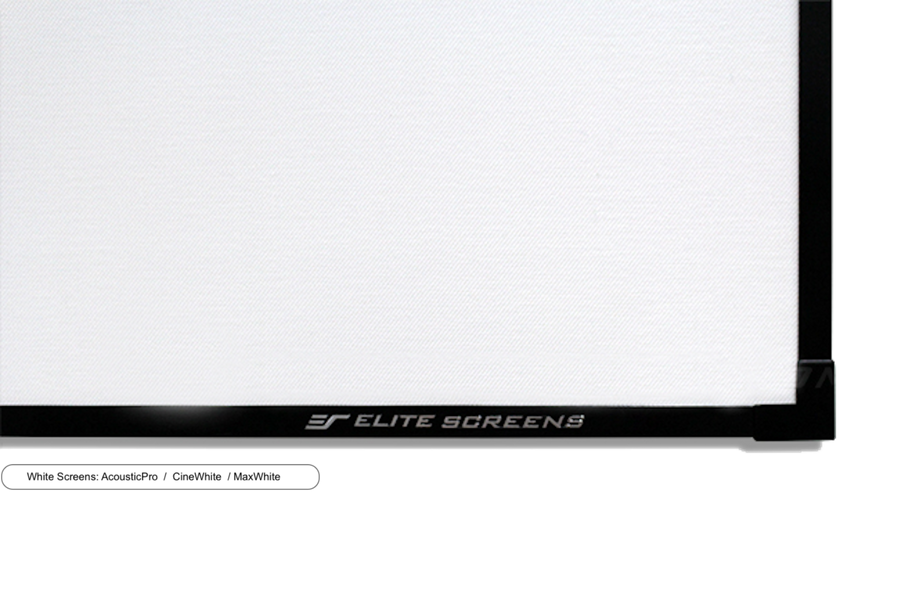

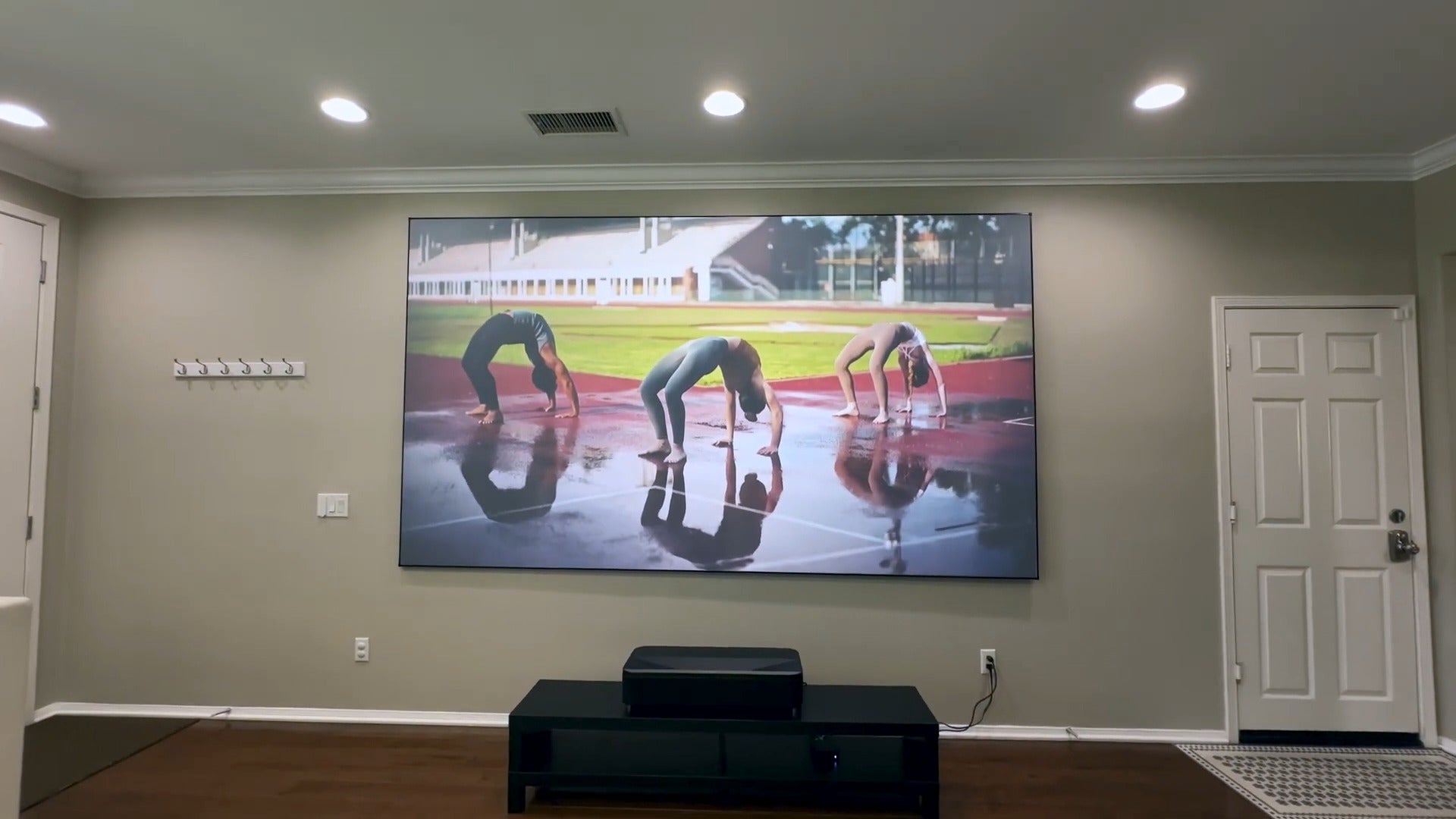

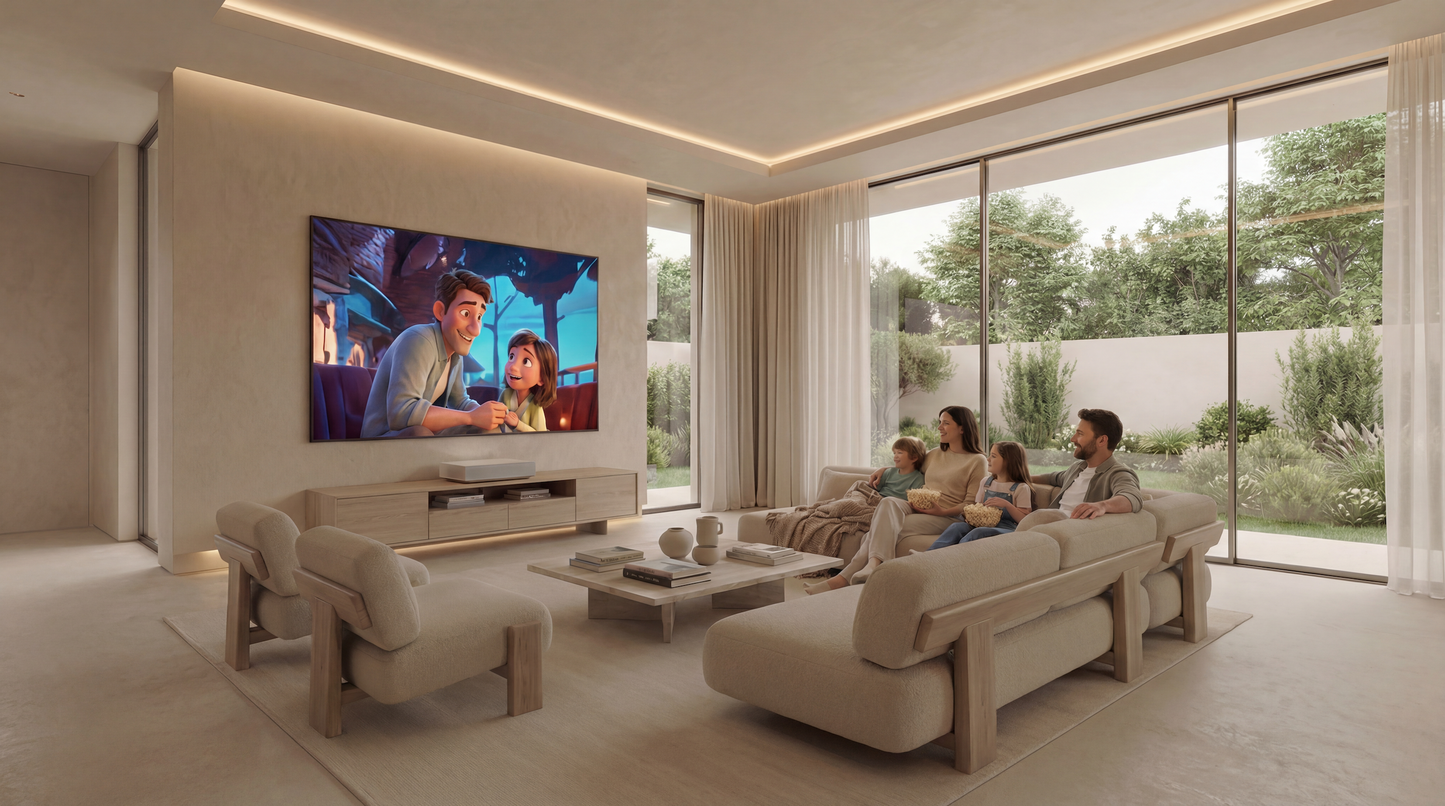

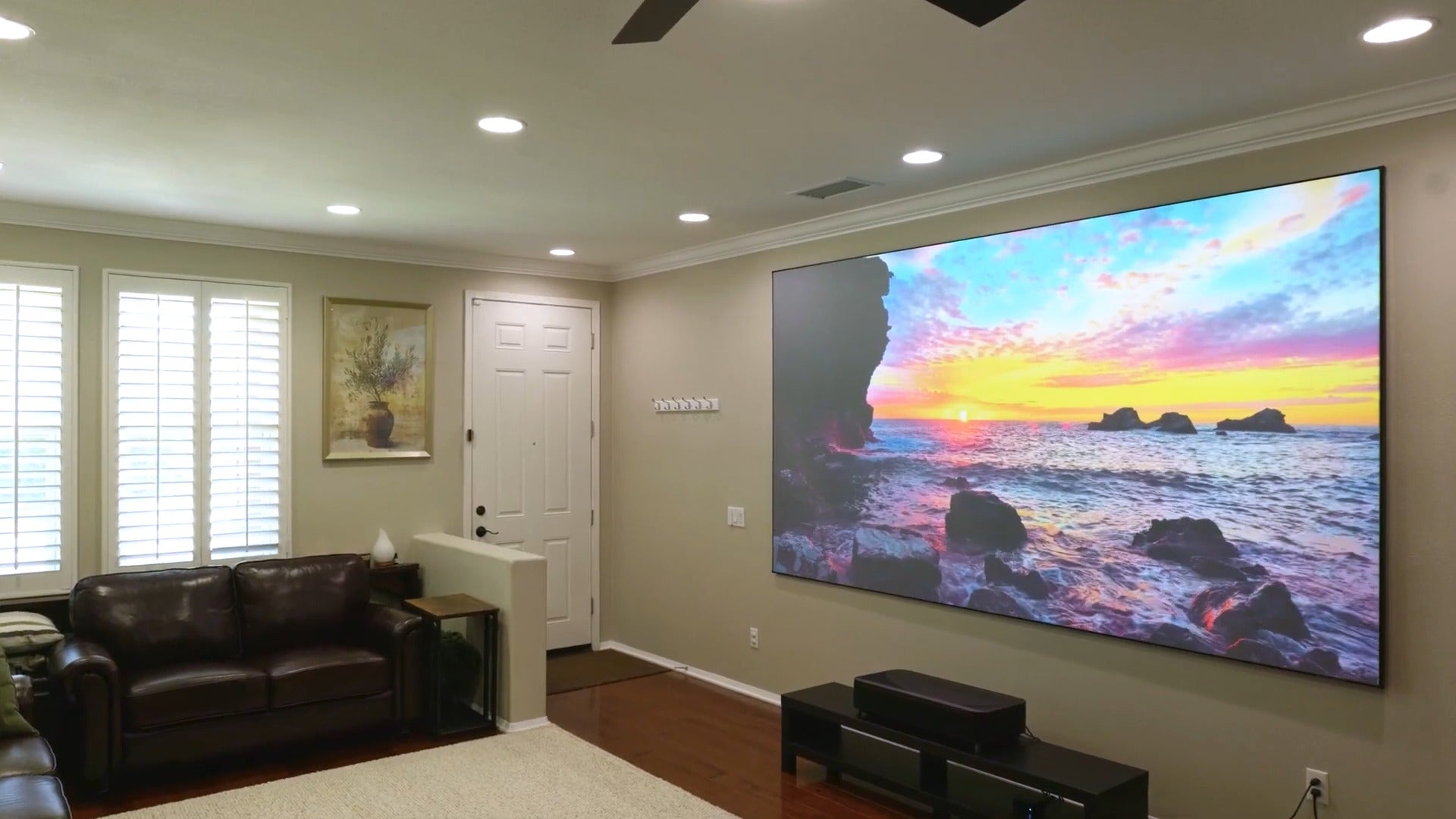

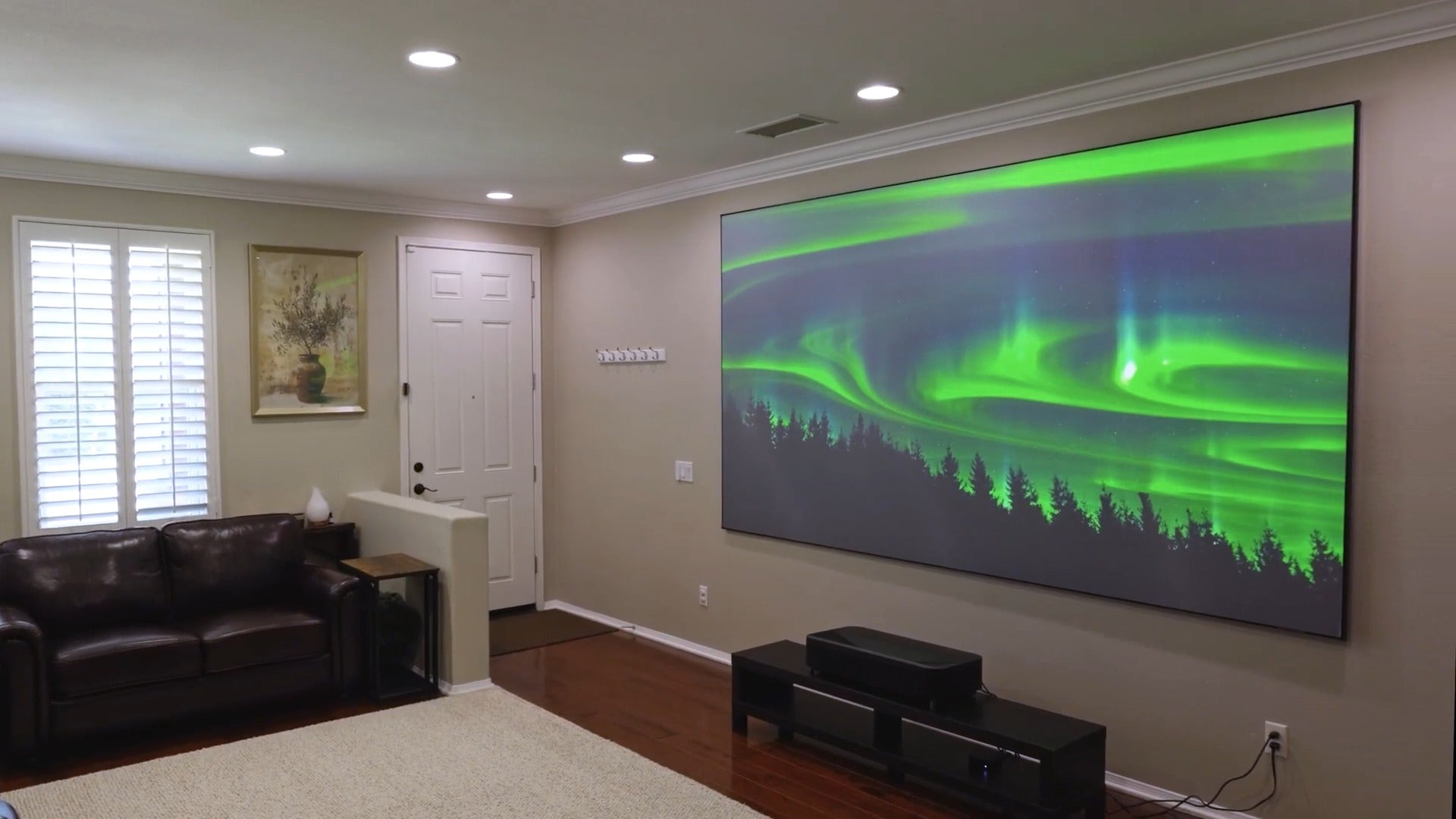

The AEON series is a framed screen without a visible frame (Edge Free technology). The frame screen looks like a large television and can optionally be equipped with LED backlighting. The optional thin frame included in the scope of delivery makes the projection screen look even more elegant. The design is ideal to be perfectly integrated into a living room or office. The light aluminum frame is covered with a CineWhite screen as standard. With the daylight screens CineGrey 3D and 5D it becomes a TV replacement. For sound fans, we also offer the screen with our acoustically transparent screen Acoustic Pro UHD. In this way, the speakers can be optimally positioned invisibly. Together with projectors with more than 2000 ANSI lumens, you get an oversized image in the usual quality even in daylight.
AEON: Edge-Free Screen
AEON: Edge-Free Screen
|
DETAILS |
|||
|
Design & Installation: |
|
Controlling: |
|
|
Scope of delivery: |
|
Quality and reliability: |
|
SCREEN MATERIALS

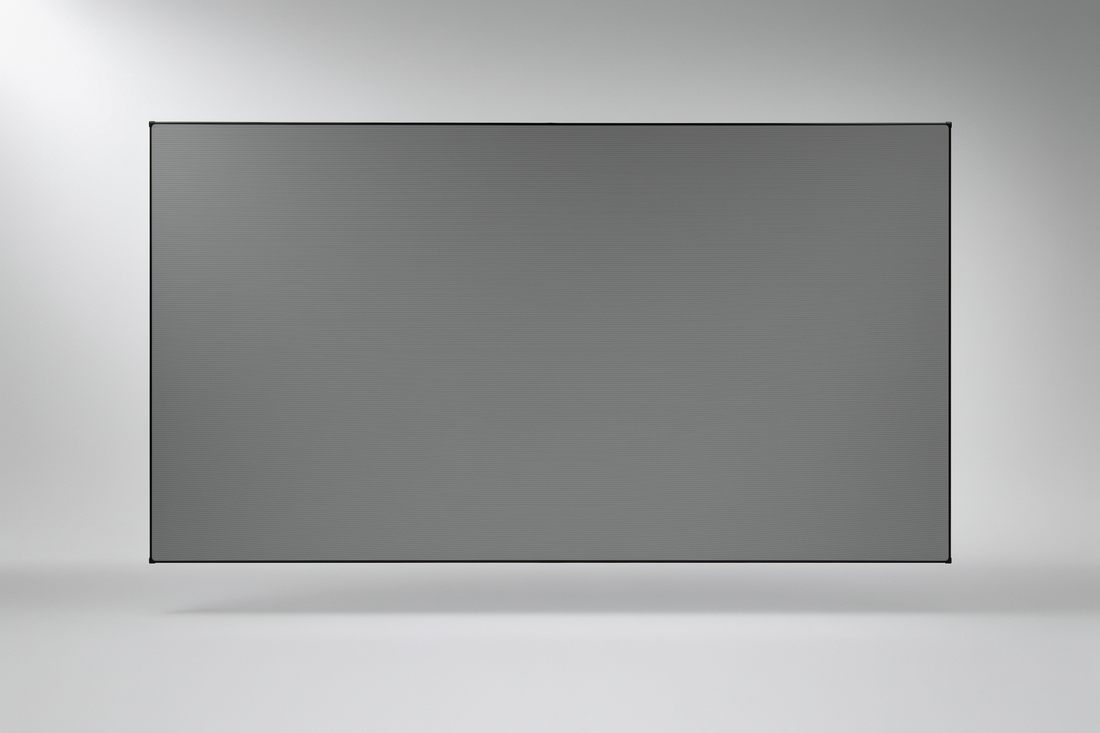

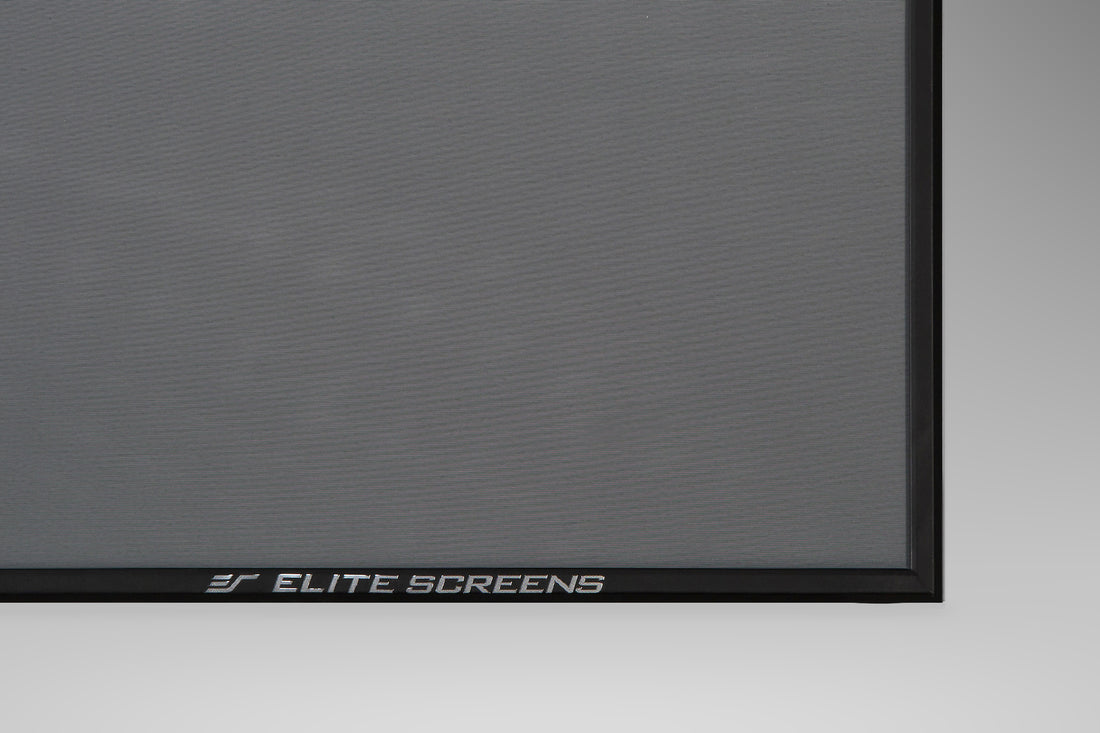

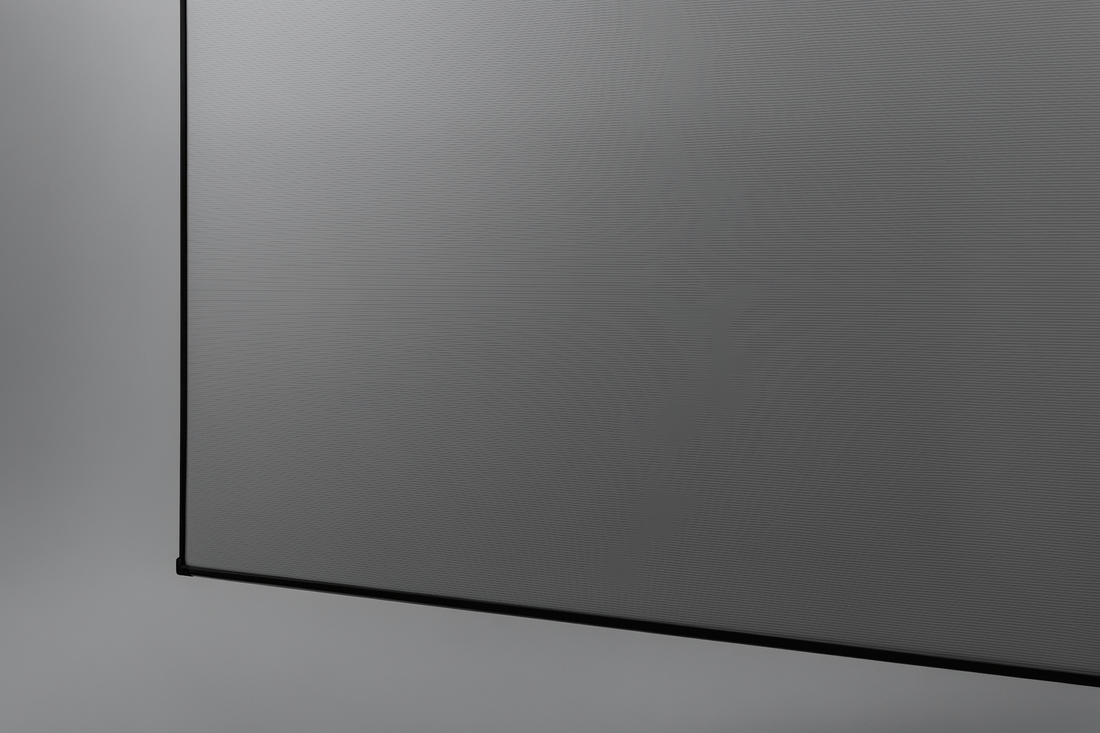

CLR® 3 - Black Fire
-(Ceiling Light Rejecting) material absorbs 90% of overhead lighting -Improves color saturation and black levels under ambient light conditions -75x contrast improvement over standard matte white screens in ambient light room environments -Black backing eliminates light penetration -Project from a short distance without shadowing the picture -170° viewing angle (85° L/R) – Allows viewers to spread out while maintaining brightness uniformity -Micro-serriform optical structure filters out ceiling light for superior picture quality -4K/8K Ultra HD, HDR Ready - Suitable for use with UST or ultra-short-throw projectors (UST = Ultra-Short-Throw)= Ultra-Short-Throw)
-(Ceiling Light Rejecting) material absorbs 90% of overhead lighting -Improves color saturation and black levels under ambient light conditions -75x contrast improvement over standard matte white screens in ambient light room environments -Black backing eliminates light penetration -Project from a short distance without shadowing the picture -170° viewing angle (85° L/R) – Allows viewers to spread out while maintaining brightness uniformity -Micro-serriform optical structure filters out ceiling light for superior picture quality -4K/8K Ultra HD, HDR Ready - Suitable for use with UST or ultra-short-throw projectors (UST = Ultra-Short-Throw)= Ultra-Short-Throw)
StarBright CLR®
- Ceiling light inhibiting & contrast enhancing projection screens with multi-layer structure -Developed for UST projectors to improve brightness, color and contrast -Gain: 0.6 -180 ° (90 ° L&R) viewing angle -Active 3D and 4K Ultra HD ready - Suitable for use with UST or ultra-short-throw projectors (UST = Ultra-Short-Throw)= Ultra-Short-Throw)
CineWhite
- Matt white screen material - 1.1 Gain - Active 3D, 4K Ultra HD and HDR capable - 180° (90° L&R) viewing angle - Black backside - Wide spread of light through diffusion uniformity - Compatible with regular projectors in electric screens; & with regular, short and UST projector in fixed frame screens
- Matt white screen material - 1.1 Gain - Active 3D, 4K Ultra HD and HDR capable - 180° (90° L&R) viewing angle - Black backside - Wide spread of light through diffusion uniformity - Compatible with regular projectors in electric screens; & with regular, short and UST projector in fixed frame screens
4D® CineGrey AcousticPro
Ceiling and Ambient Light Rejecting (ALR/CLR®) eliminates up to 65% washout from ambient light •Gain: 1.2 -High Contrast material enhances color saturation and black levels for greater shadow detail -Directional Reflectivity angular reflective orientation brings image clarity into the viewer’s line of sight -Acoustically Transparent Perforated to allow in-wall speakers to sound through the screen -Black backing eliminates light penetration for greater picture clarity -ISF Certified for accurate color reproduction, color contrast, and black-white dynamic range. -Flame resistant: Complies with NFPA 701 and ASTME84 standards -Projector Type Compatibility: Standard Throw
Ceiling and Ambient Light Rejecting (ALR/CLR®) eliminates up to 65% washout from ambient light •Gain: 1.2 -High Contrast material enhances color saturation and black levels for greater shadow detail -Directional Reflectivity angular reflective orientation brings image clarity into the viewer’s line of sight -Acoustically Transparent Perforated to allow in-wall speakers to sound through the screen -Black backing eliminates light penetration for greater picture clarity -ISF Certified for accurate color reproduction, color contrast, and black-white dynamic range. -Flame resistant: Complies with NFPA 701 and ASTME84 standards -Projector Type Compatibility: Standard Throw
3D CineGrey
- Ambient light rejecting & contrast enhancing projection screen with angular reflection and ambient light rejection technology - Premium and excellent clarity with a sharp images - Gain: 1.2 - 90º (L&R 45º) viewing angle - 4K UHD and Active 3D capable - Suitable for use with regular projectors
5D CineGrey
- Ambient light inhibiting & contrast enhancing projection screen with angular reflection and ambient light rejection technology - Premium and excellent clarity with a sharp images - Gain: 1.5 - 80º (L&R 40º) viewing angle - 4K UHD and Active 3D capable - Suitable for use with regular projectors
- Ambient light rejecting & contrast enhancing projection screen with angular reflection and ambient light rejection technology - Premium and excellent clarity with a sharp images - Gain: 1.2 - 90º (L&R 45º) viewing angle - 4K UHD and Active 3D capable - Suitable for use with regular projectors
5D CineGrey
- Ambient light inhibiting & contrast enhancing projection screen with angular reflection and ambient light rejection technology - Premium and excellent clarity with a sharp images - Gain: 1.5 - 80º (L&R 40º) viewing angle - 4K UHD and Active 3D capable - Suitable for use with regular projectors
FALR5 - Daylight Extreme
-(Ceiling & ambient Light Rejecting) Dark grey material absorbs 90% of overhead lighting -Improves color saturation and black levels under ambient light conditions -90x contrast improvement over standard matte white screens in ambient light room environments -Black backing eliminates light penetration -Project from a short distance without shadowing the picture -90° viewing angle (45° L/R) – Allows viewers to spread out while maintaining brightness uniformity -High gain, three-way anti-light -Anti-glare, Speckle suppression -Back bottom scratch-proof treatment -4K/8K Ultra HD, HDR Ready - Suitable for use with UST or ultra-short-throw projectors (UST = Ultra-Short-Throw)= Ultra-Short-Throw)
-(Ceiling & ambient Light Rejecting) Dark grey material absorbs 90% of overhead lighting -Improves color saturation and black levels under ambient light conditions -90x contrast improvement over standard matte white screens in ambient light room environments -Black backing eliminates light penetration -Project from a short distance without shadowing the picture -90° viewing angle (45° L/R) – Allows viewers to spread out while maintaining brightness uniformity -High gain, three-way anti-light -Anti-glare, Speckle suppression -Back bottom scratch-proof treatment -4K/8K Ultra HD, HDR Ready - Suitable for use with UST or ultra-short-throw projectors (UST = Ultra-Short-Throw)= Ultra-Short-Throw)
AcousticPro-UHD
- Acoustically transparent screens:speakers behind the screen - Broad diffusion uniformity - maintains the luminance - Gain: 1.0 - 180° (90°L/R) viewing angle - 4K UHD and Active 3D capable - Moire-free - Average attenuation: -2.36dB - NFPA 701 certification - Suitable for use with regular projectors
- Acoustically transparent screens:speakers behind the screen - Broad diffusion uniformity - maintains the luminance - Gain: 1.0 - 180° (90°L/R) viewing angle - 4K UHD and Active 3D capable - Moire-free - Average attenuation: -2.36dB - NFPA 701 certification - Suitable for use with regular projectors
